Voron 2.4 R2 Pro+ Build - Building the Frame
References and Links
Build Steps
Section titled “Build Steps”The Voron assembly manual starts with the building of the frame. I will start from this point.

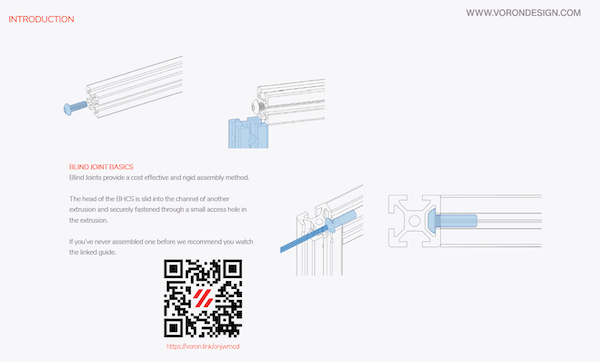

Blind Joints
Section titled “Blind Joints”

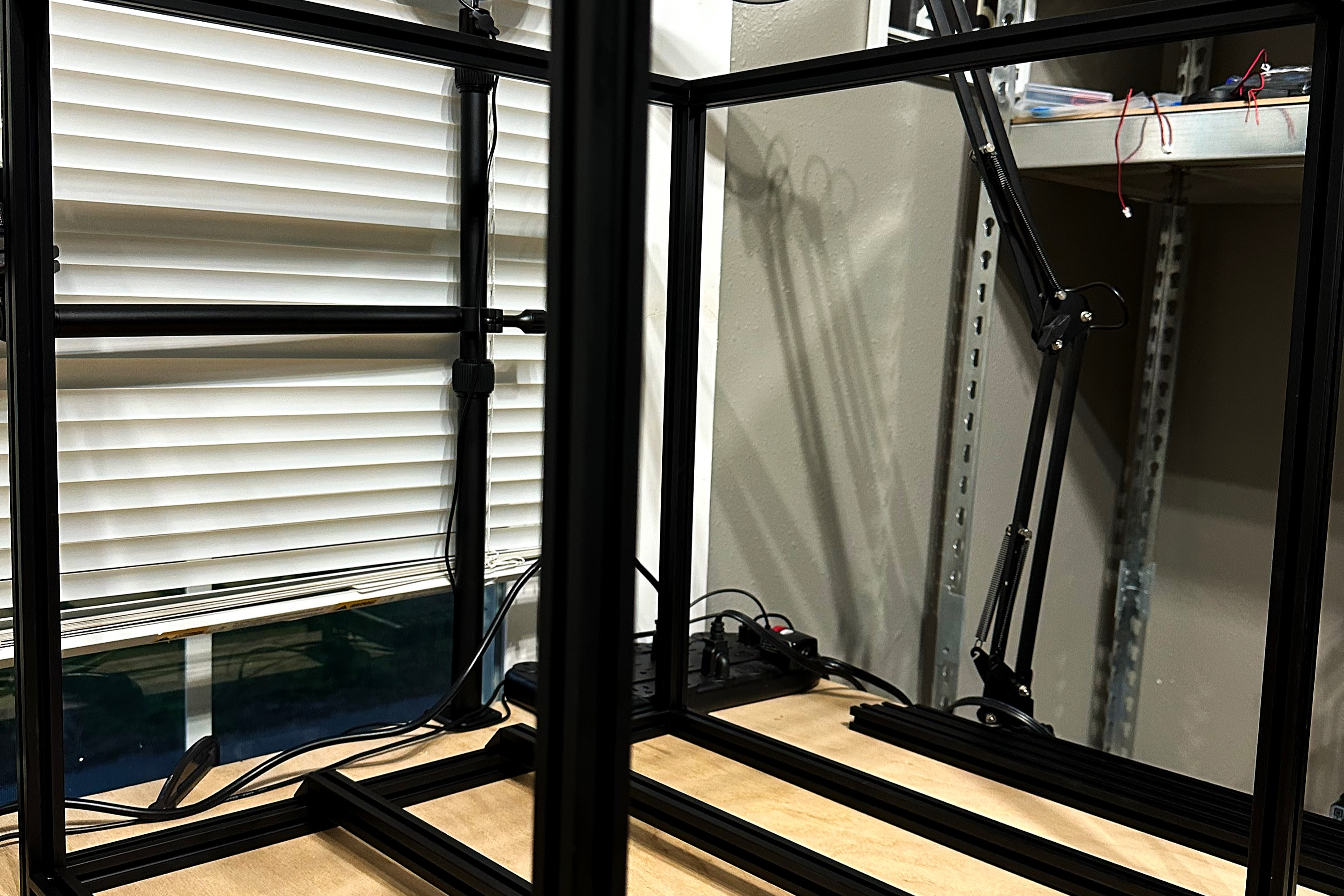

Using the blind joints. The Frame is assembled.
Frame Parts
Section titled “Frame Parts”- M5 x 16 BHCS
- 10 A Extrusions
- 4 B Extrusions
- 2 C Extrusions
- 1 D Extrusion
- 1 E Extrusion
- 4 Corner Brackets
